DC 2850MHz Low Pass RF Cavity Filter

Product Categories
Chengdu SinoScite Technology Co., Ltd.
Contact Now

DC 2850MHz Low Pass RF Cavity Filter

  • 1
  • 2

Brand Name : Sinoscite

Model Number : LPF8032A2850SF

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Pass Band Range : DC ~ 2850MHz

Insertion loss : 1.5dB@ DC~2800MHz

VSWR : 1.8

Rejection : 45dB @3.2 ~ 18GHz

Power : 5W

Connector Type : SMA Female

Temperature : -40~+85°C

Customize : available

Contact Now

Customized RF Cavity Filter DC-2850MHz Low Pass Filter RF Cavity Filter

Product Details

Product Name
Low Pass Filter
Model No.
UIYLPF8032A2850SF
Pass Band Range
DC-2850MHz
Insertion Loss
1.5dB@ DC~2800MHz
VSWR
1.8
Rejection
45dB @3.2 ~ 18GHz
Reverse Power
5W
Connector Type
SMA Female
Temperature
-40~+85°C

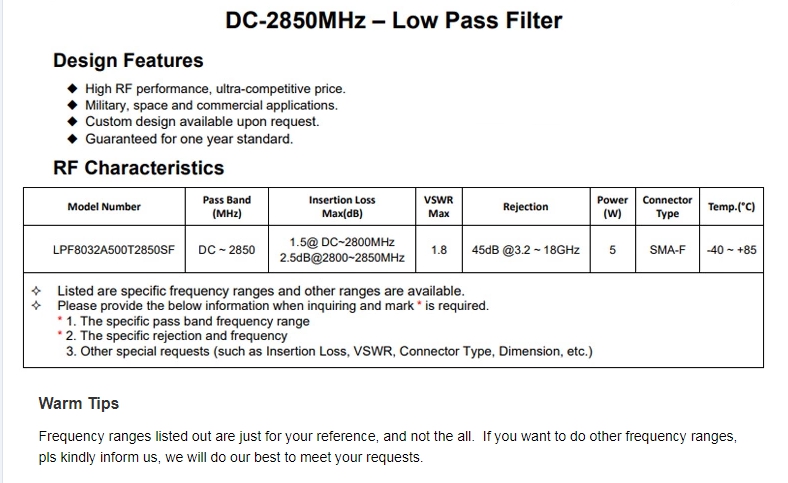

Dimension&Specification

DC 2850MHz Low Pass RF Cavity Filter

DC 2850MHz Low Pass RF Cavity FilterDC 2850MHz Low Pass RF Cavity FilterDC 2850MHz Low Pass RF Cavity Filter
