N Female Connector Rf Directional Coupler 26.5-40.0ghz Custom Designed

Product Categories
Chengdu SinoScite Technology Co., Ltd.
Contact Now

N Female Connector Rf Directional Coupler 26.5-40.0ghz Custom Designed

  • 1
  • 2

Brand Name : Sinoscite

Model Number : CP1113

MOQ : 1 Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Place of Origin : Sichuan, China

Certification : ISO 9001:2015

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Delivery Time : Less than 4weeks

Supply Ability : 2000 Piece per month

Price : Negotiable

operating frequency : 26.5-40.0GHz

Connector : N Female

VSWR : ≤1.05

coupling factor : 20-60

Working bandwidth : ≤20%

product name : Directional Coupler

Contact Now

Directional Coupler Rf Directional Coupler N Female Connector

1 Description: Directional coupler is a universal microwave/millimeter wave component, which can be used for signal isolation, separation and mixing, such as power monitoring, source output power stability, signal source isolation, transmission and reflection of the sweep test.The main technical indexes are directivity, standing wave ratio, coupling degree and insertion loss.

2 Quick Details:

Place of Origin:Sichuan, China
Brand Name:Sinoscite
Model Number:CP1113
Frequency:26.5-40.0GHz
Directivity:≥12dB
Connector:SMA-F
VSWR:1.05
Material:Aluminum
Insertion Loss:2.0
MOQ:2PCS
Keyword:Directional Coupler

3 Features

Low insertion loss
High directivity
High Isolation
Wide work band
Can be designed by client's request.


4 Specification

ModelWorking Freq.(GHz)

Coupling
(dB)

Flatness
(dB)

Insertion Loss(dB)VSWRCoupling port VSWR

Directivity
(dB)

Dimension
L*W*H(CM)

SNSD-310-003060.38-610±0.5±1.01.251.251.11513.97*1.27*1.778
SNSD-310-004200.4-2010±0.6±1.21.41.41.71413.97*1.27*1.778
SNSD-310-005080.5-810±0.4±0.81.251.251.22011.176*1.27*1.778
SNSD-310-005260.5-26.510±0.8±1.01.41.42.21411.176*1.27*1.778
SNSD-310-005400.5-4010±0.9±1.51.71.72.91011.176*1.27*1.778
SNSD-310-010201-2010±0.4±0.41.41.41.4167.336*1.27*1.651
SNSD-310-010261-26.510±0.5±0.51.41.41.6147.336*1.27*1.651
SNSD-310-010401-4010±0.6±0.91.71.72.5108.89*1.27*1.778
SNSD-310-060186-1810±0.3±0.41.31.30.9163.175*1.27*1.6002
SNSD-310-060266-26.510±0.4±0.51.41.41.4163.175*1.27*1.6002
SNSD-310-060406-4010±0.5±0.71.61.61.7123.175*1.27*1.6002
SNSD-310-1004010-4010±0.5±0.71.61.61.7123.175*1.27*1.6002
SNSD-310-1802618-26.510±0.3±0.41.41.41.4143.175*1.27*1.6002
SNSD-310-1804018-4010±0.5±0.51.71.71.7123.175*1.27*1.6002
SNSD-310-2654026.5-4010±0.5±0.51.71.71.7133.175*1.27*1.6002


5 Company's service

1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.

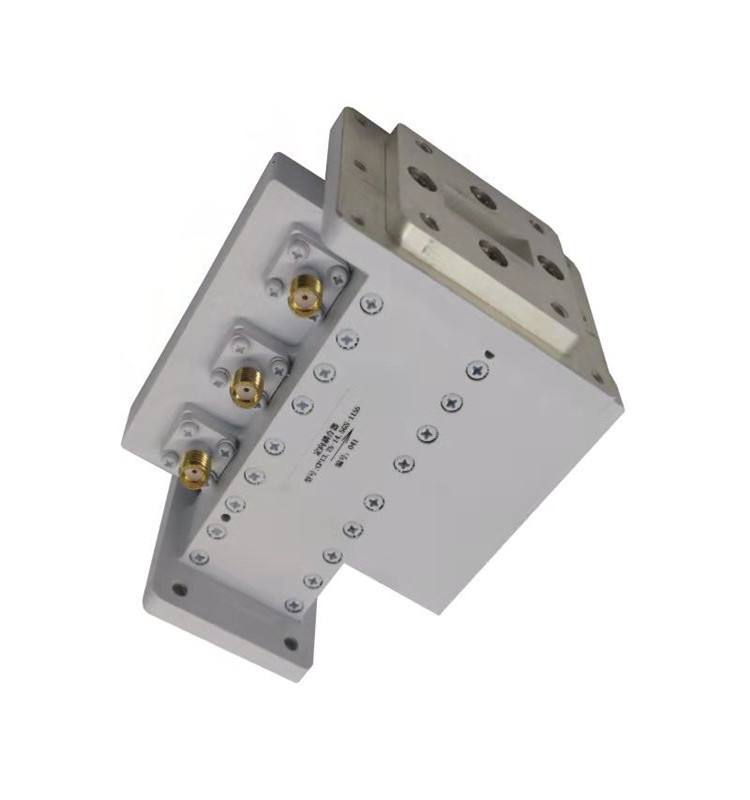

6 PHoto

N Female Connector Rf Directional Coupler 26.5-40.0ghz Custom Designed
