25.25-31GHz Bandpass RF Microwave Filters Aluminum Spray Paint

Product Categories
Chengdu SinoScite Technology Co., Ltd.
Contact Now

25.25-31GHz Bandpass RF Microwave Filters Aluminum Spray Paint

  • 1
  • 2
  • 3

Brand Name : Sinoscite

Model Number : BPF25.25-31GW-3341

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Freq. range : 25.25-31GHz

Insertion loss : ≤0.3dB

In-band fluctuation : ≤0.2dB

Rejection : ≥45dB@17-23.55GHz

VSWR : ≤1.3

Interface : WR34

Working temperature : -55℃～+85℃

Storage temperature : -55℃～+100℃

Appearance color : Spray paint

Contact Now

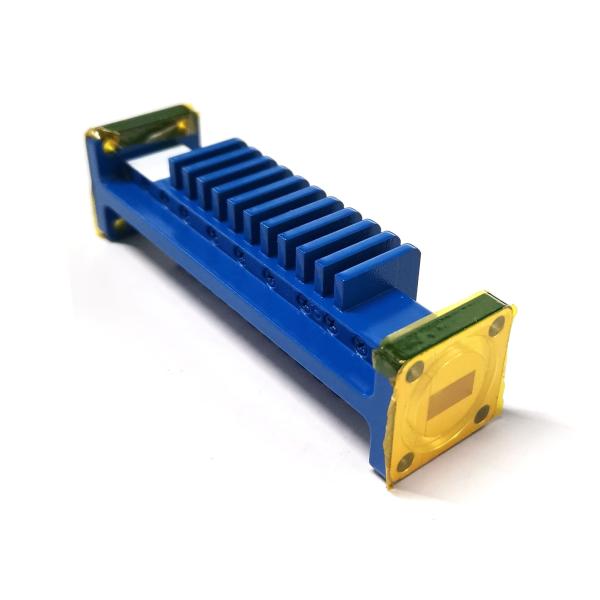

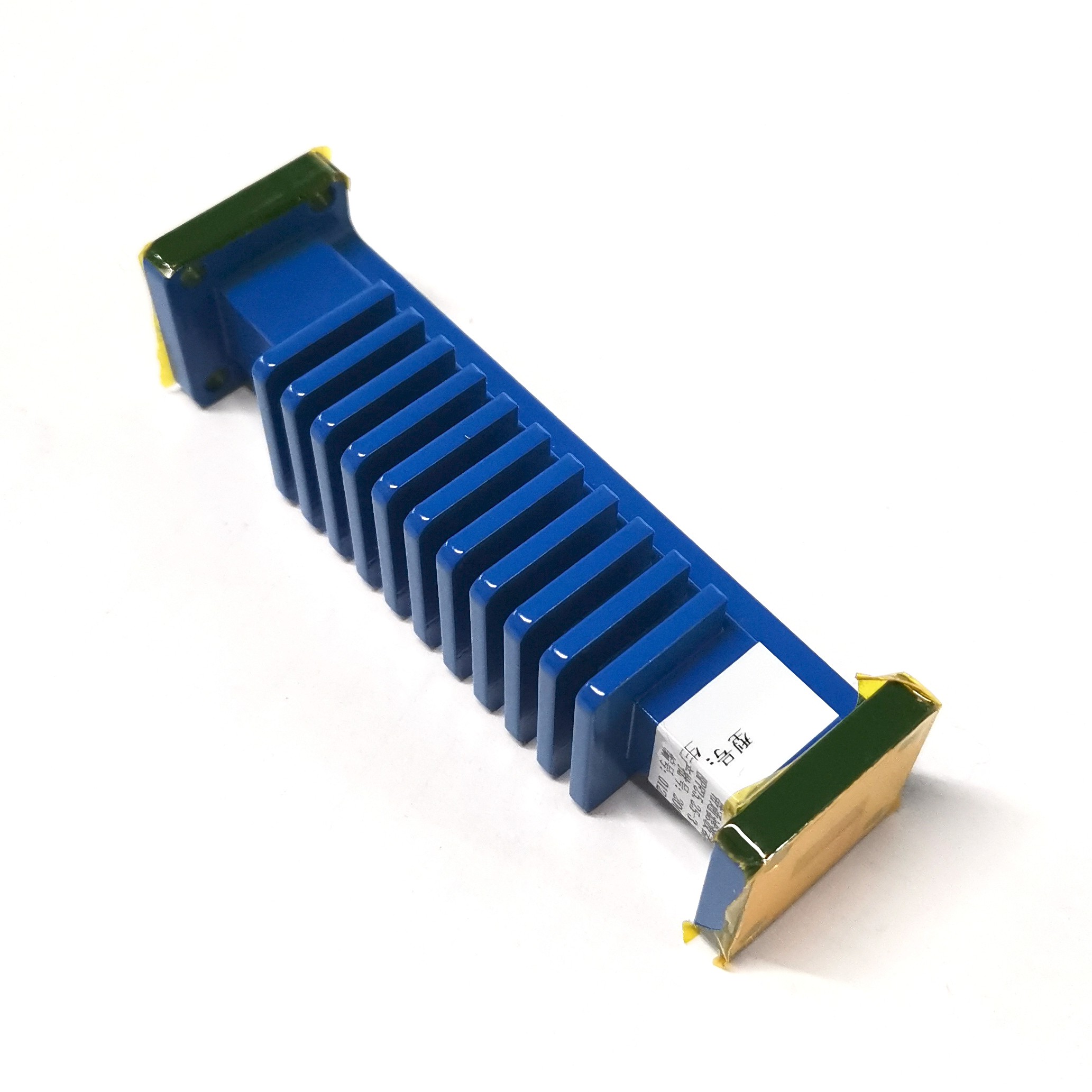

25.25-31GHz Aluminum Spray Paint RF Microwave Bandpass Filters

Sepcification

1) Working frequency: 25.25-31GHz
2) Insertion loss: ≤0.3dB
3) In-band fluctuation: ≤0.2dB
4) Stopband suppression: ≥45dB@17-23.55GHz
5) Input and output VSWR: ≤1.3
6) Input and output interface form: WR34, with a waterproof groove at one end of the standard flange
7) Working temperature: -55℃～+85℃
8) Storage temperature: -55℃～+100℃
9) Surface treatment: spray three anti-paint; blue paint
10) Material: aluminum alloy

Operating frequency (GHz) Insertion loss (dB) VSWR Suppression point f1(GHz) Suppression point f2(GHz) Connector Size (mm)
0.585-0.615 0.5 2 0.45(60dB) 0.75(60dB) SMA-K 113*50*20
0.71-0.73 2.5 1.3 0.695(45dB) 0.735(50dB) SMA-K 108*65*35
0.8-1.6 5 2.2 0.75(40dB) 1.65(50dB) SMA-K 104*51*30
1.2-1.4 0.3 1.35 0.8(50dB) 2-6(50dB) N-K 88*64*40
1.95-2.05 2 1.5 1.9(40dB) 2.1(40dB) SMA-K 41*84*23
2.2-2.8 1 2 2(30dB) 3(30dB) SMA-K 90*35*20
2.4-3.6 1 1.5 2(30dB) 4(30dB) SMA-K 48*24*10
4-6 1 1.5 3.4(40dB) 7-15(40dB) SMA-K 45*22*9
8.15-8.25 3 1.5 8.1(40dB) 8.3(40dB) SMA-K 40*32*16
8-12 1 1.8 7(45dB) 13-20(30dB) SMA-K 140*20*20
12.7-13.3 1.5 1.5 12.3(40dB) 13.7(40dB) SMA-K 68*17*11
12-18 1 1.2 8.2(50dB) 20.8(50dB) SMA-K 68*17*11
18-26.5 1 1.5 5-12(60dB) 36-40(60dB) 2.92-K 39*18*13
27.5-31 1.5 2 26.8(40dB) 31.9(60dB) 2.92-K 78*16*12
33-40 1 1.5 30(85dB) 43(85dB) 2.92-K 49*14*11
43.5-45.5 3 2 42.8(50dB) 46.2(50dB) 2.4-K 50*13*13
58-62 1 1.5 55(35dB) 65(35dB) 1.85-K 40*10*10

25.25-31GHz Bandpass RF Microwave Filters Aluminum Spray Paint25.25-31GHz Bandpass RF Microwave Filters Aluminum Spray Paint25.25-31GHz Bandpass RF Microwave Filters Aluminum Spray Paint
