14-14.5GHz RF Microwave Bandpass Filters Aluminum Spray Paint Black

Product Categories
Chengdu SinoScite Technology Co., Ltd.
Contact Now

14-14.5GHz RF Microwave Bandpass Filters Aluminum Spray Paint Black

  • 1
  • 2
  • 3

Brand Name : Sinoscite

Model Number : BPF14-14.5GW-3160

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Freq. range : 14-14.5GHz

Centre Insertion loss : ≤2dB

Rejection : ≥45dBC@13.05GHz&14.95GHz

VSWR : ≤1.5

Material : Aluminum

Working temperature : -40℃~+70℃

Storage temperature : -55℃~+85℃

Appearance color : Spray paint black

Remarks : SMA-K (detachable)/BJ140

Contact Now

14-14.5GHz Aluminum Spray Paint Black RF Microwave Bandpass Filters​

Sepcification

1 Product type: Band pass filter
2 Model:BPF14-14.5GW-3160
3 Passband frequency: 14-14.5GHz
4 Center insertion loss: ≤2dB
5 Inhibition: ≥45dBC@13.05GHz&14.95GHz
6 VSWR: ≤1.5
7 Material: Aluminum alloy
8 Working temperature: -40℃~+70℃
9 Storage temperature: -55℃~+85℃
10 Appearance color: spray paint black
11 Remarks: SMA-K (detachable)/BJ140

Operating frequency (GHz) Insertion loss (dB) VSWR Suppression point f1(GHz) Suppression point f2(GHz) Connector Size (mm)
0.585-0.615 0.5 2 0.45(60dB) 0.75(60dB) SMA-K 113*50*20
0.71-0.73 2.5 1.3 0.695(45dB) 0.735(50dB) SMA-K 108*65*35
0.8-1.6 5 2.2 0.75(40dB) 1.65(50dB) SMA-K 104*51*30
1.2-1.4 0.3 1.35 0.8(50dB) 2-6(50dB) N-K 88*64*40
1.95-2.05 2 1.5 1.9(40dB) 2.1(40dB) SMA-K 41*84*23
2.2-2.8 1 2 2(30dB) 3(30dB) SMA-K 90*35*20
2.4-3.6 1 1.5 2(30dB) 4(30dB) SMA-K 48*24*10
4-6 1 1.5 3.4(40dB) 7-15(40dB) SMA-K 45*22*9
8.15-8.25 3 1.5 8.1(40dB) 8.3(40dB) SMA-K 40*32*16
8-12 1 1.8 7(45dB) 13-20(30dB) SMA-K 140*20*20
12.7-13.3 1.5 1.5 12.3(40dB) 13.7(40dB) SMA-K 68*17*11
12-18 1 1.2 8.2(50dB) 20.8(50dB) SMA-K 68*17*11
18-26.5 1 1.5 5-12(60dB) 36-40(60dB) 2.92-K 39*18*13
27.5-31 1.5 2 26.8(40dB) 31.9(60dB) 2.92-K 78*16*12
33-40 1 1.5 30(85dB) 43(85dB) 2.92-K 49*14*11
43.5-45.5 3 2 42.8(50dB) 46.2(50dB) 2.4-K 50*13*13
58-62 1 1.5 55(35dB) 65(35dB) 1.85-K 40*10*10

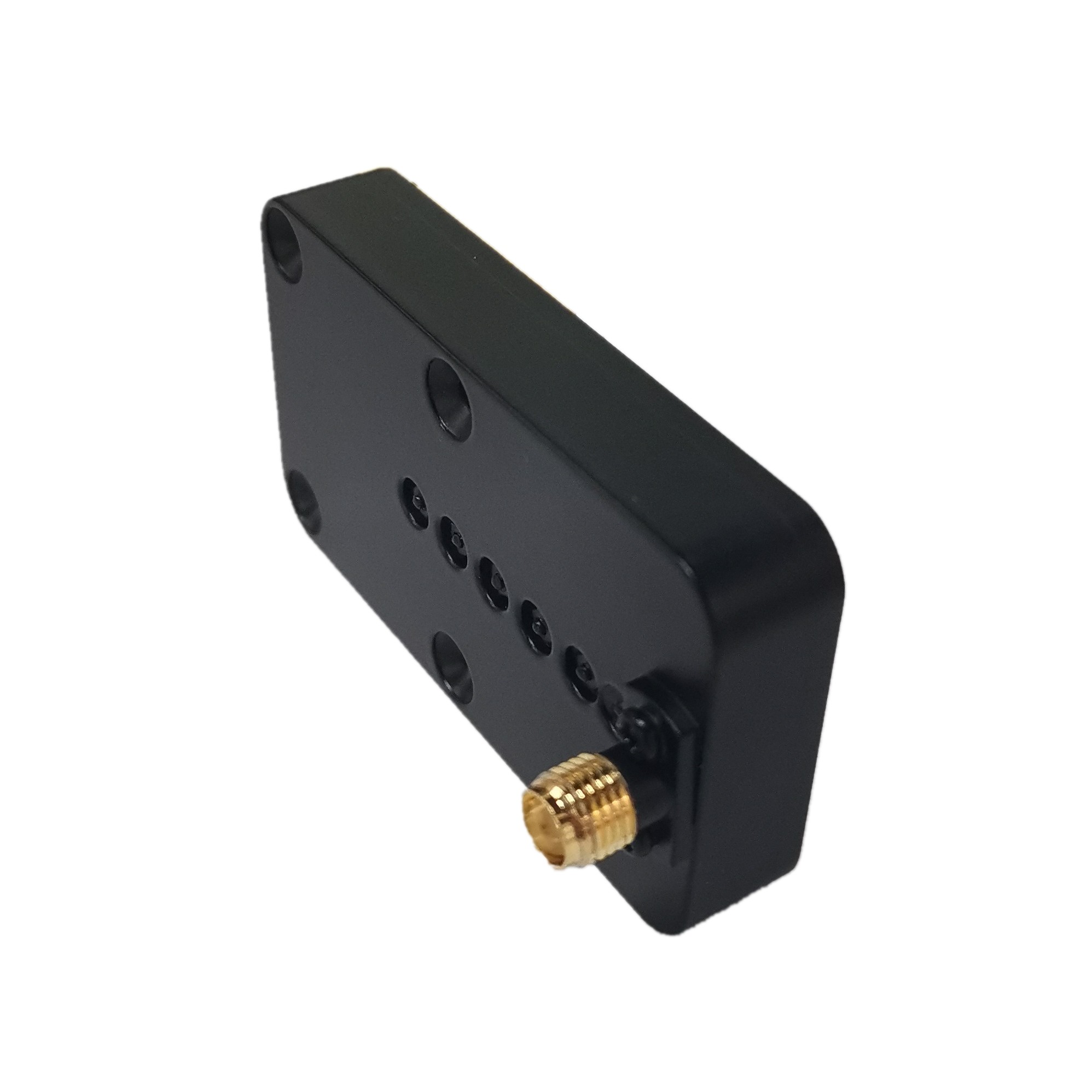

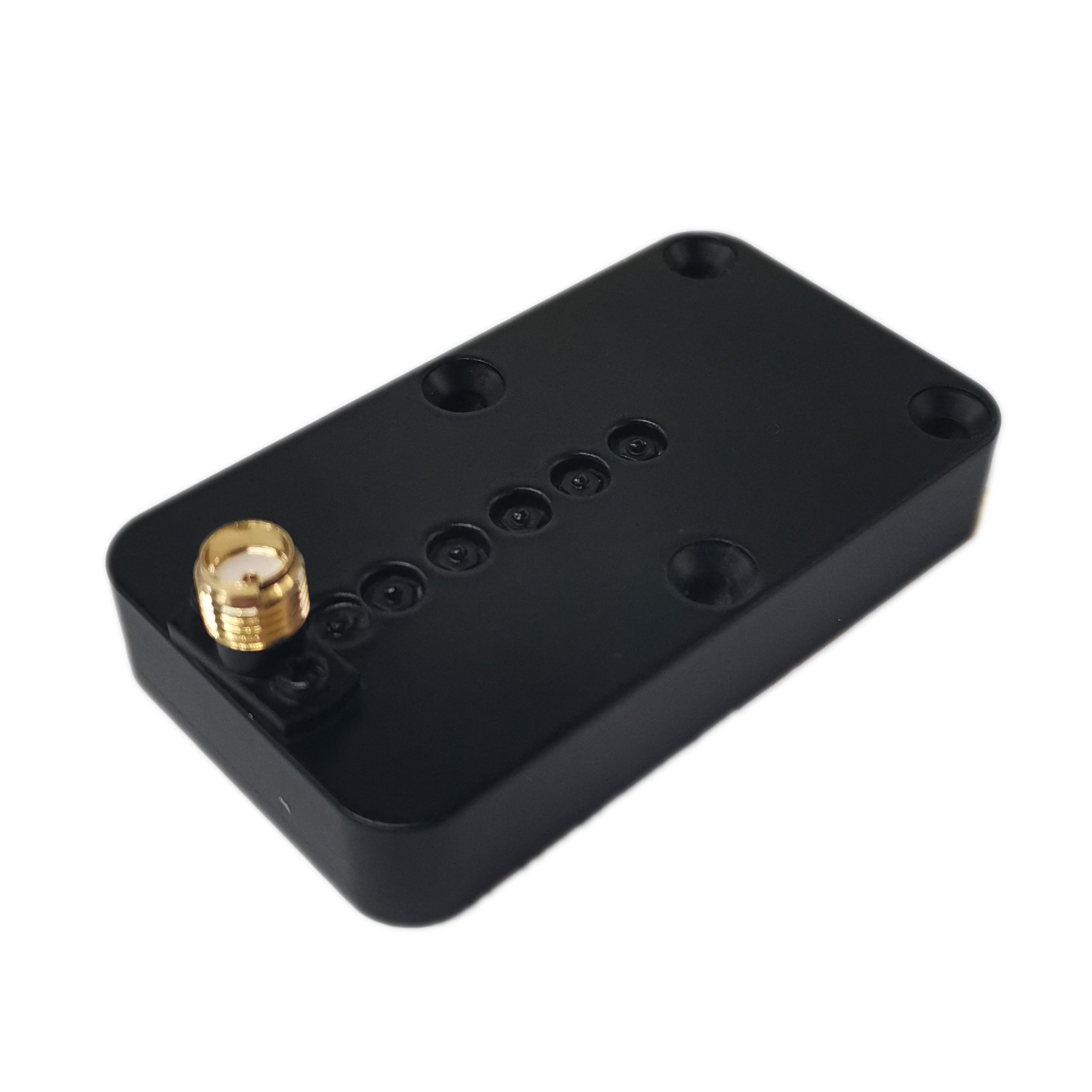

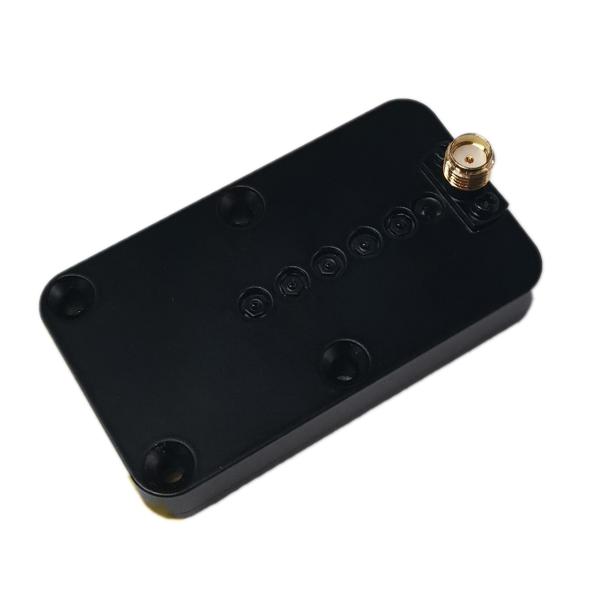

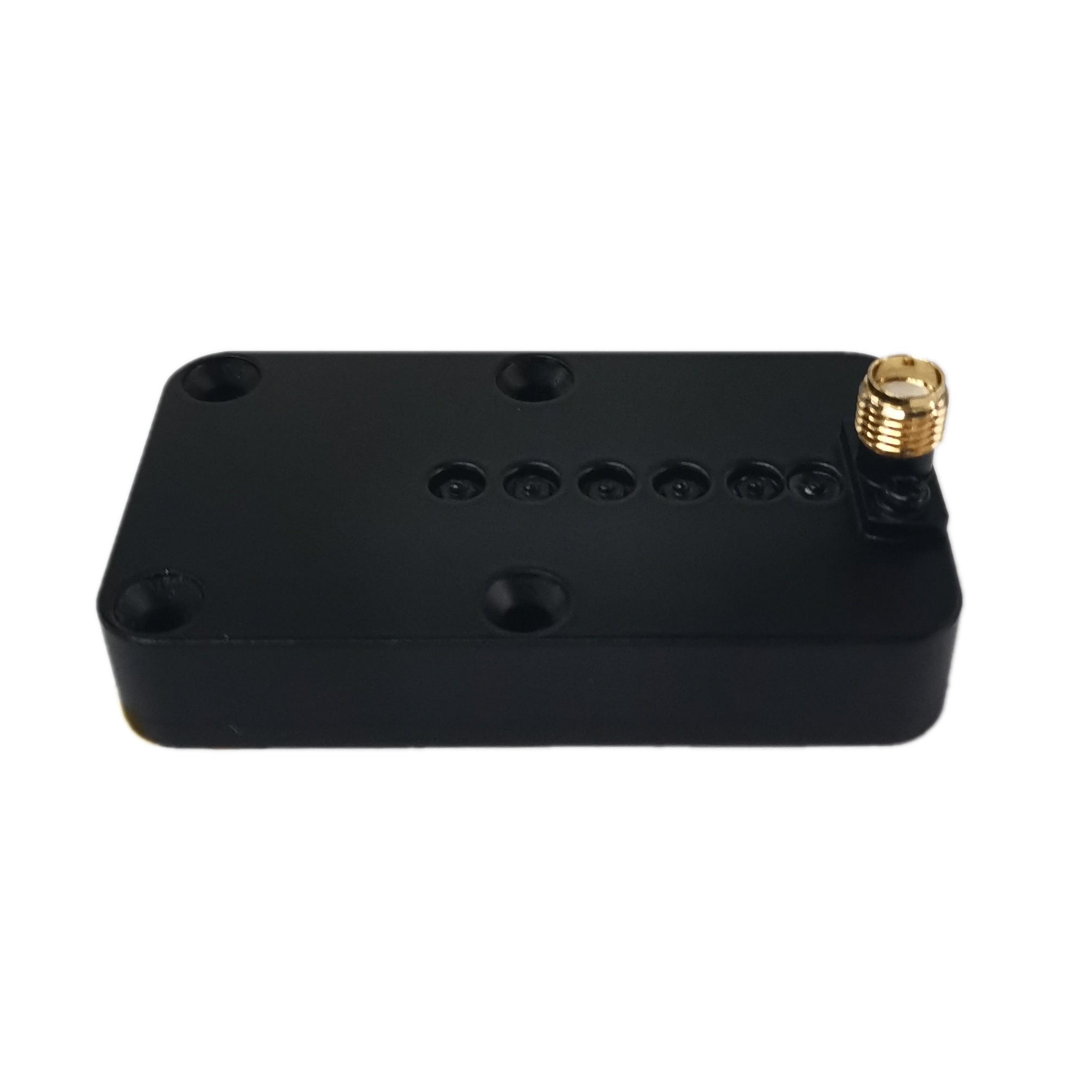

14-14.5GHz RF Microwave Bandpass Filters Aluminum Spray Paint Black14-14.5GHz RF Microwave Bandpass Filters Aluminum Spray Paint Black14-14.5GHz RF Microwave Bandpass Filters Aluminum Spray Paint Black
